안드로이드 스튜디오-viewpager,cardview

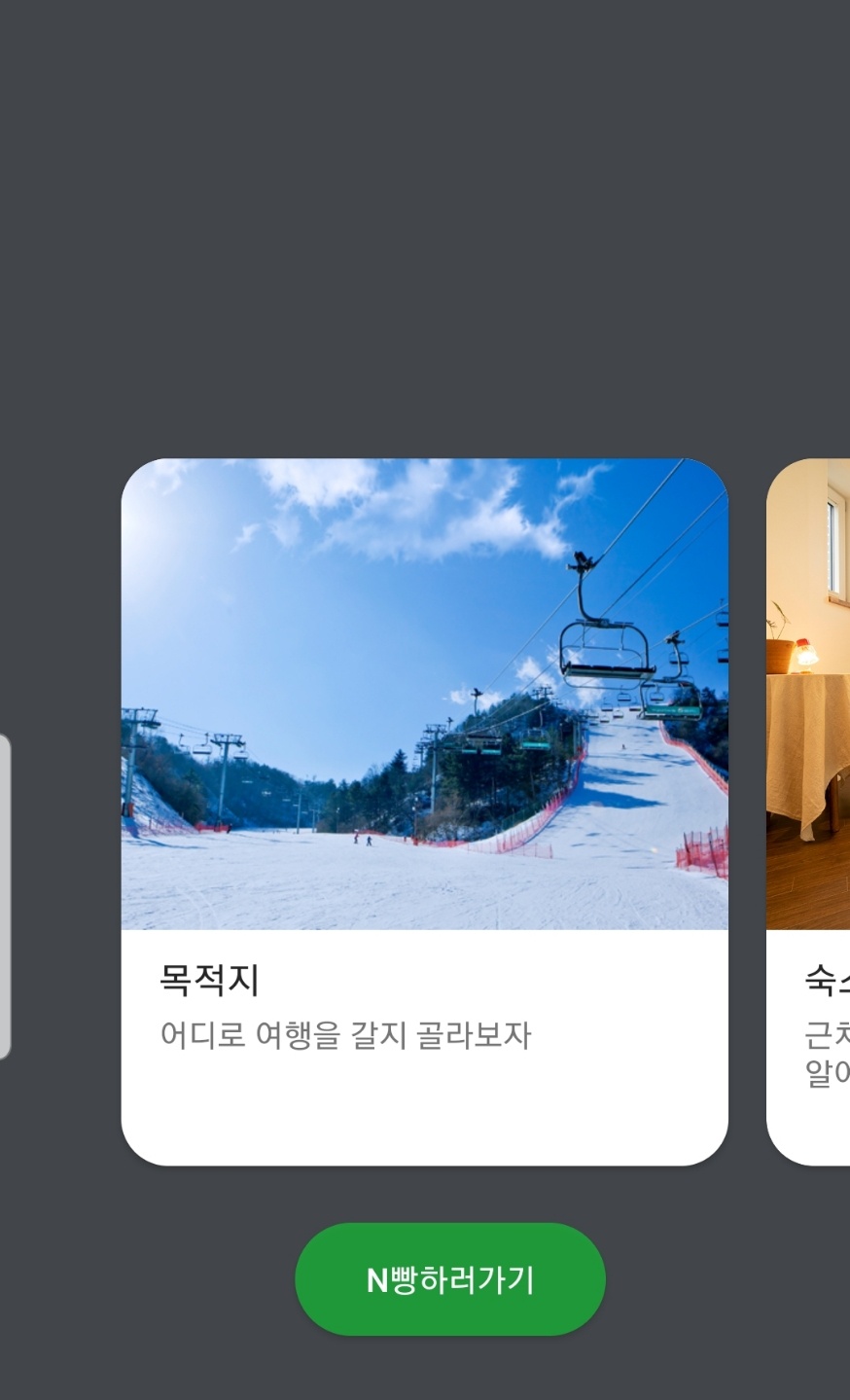

이런 식의 card viewpager를 만들어 보겠습니다



먼저 res-values-styles.xml로 가서 구문을 추가합니다

 <style name="AppTheme.NoActionBar">
        <item name="android:windowDrawsSystemBarBackgrounds">true</item>
        <item name="android:statusBarColor">@android:color/transparent</item>
        <item name="android:windowTranslucentStatus">true</item>
        <item name="windowActionBar">false</item>
        <item name="windowNoTitle">true</item>
    </style>

다음으로 main xml로 가셔서 만들어 줍니다

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:id="@+id/drawer_layout"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:orientation="horizontal">

        <androidx.viewpager.widget.ViewPager
            android:id="@+id/viewPager"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:layout_centerInParent="true"

            android:clipToPadding="false"
            android:overScrollMode="never">

        </androidx.viewpager.widget.ViewPager>

        <Button
            android:id="@+id/btnOrder"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginLeft="125dp"
            android:layout_marginTop="580dp"
            android:background="@drawable/round"
            android:paddingLeft="30dp"
            android:paddingRight="30dp"
            android:text="N빵하러가기"
            android:textColor="#fff" />


    </RelativeLayout>
    <include layout="@layout/activity_drawer"/>

</androidx.drawerlayout.widget.DrawerLayout>

다음으로 layout에 item.xml을 만들어 줍니다

//사진은 원하는 사진으로 drawable에 넣어서 사용해줍니다

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:gravity="center_vertical">


    <androidx.cardview.widget.CardView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:cardCornerRadius="20dp"
        android:layout_margin="8dp">
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="300dp">

        <ImageView
            android:id="@+id/image"
            android:src="@drawable/ski"
            android:scaleType="centerCrop"
            android:layout_width="match_parent"
            android:layout_height="200dp" />

        <TextView
            android:id="@+id/title"
            android:textColor="#262626"
            android:layout_below="@id/image"
            android:layout_marginTop="10dp"
            android:layout_marginLeft="16dp"
            android:text="Brochure"
            android:textSize="16sp"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

        <TextView
            android:id="@+id/desc"
            android:layout_below="@id/title"
            android:layout_marginTop="3dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            android:maxLines="3"
            android:drawablePadding="10dp"
            android:ellipsize="end"
            android:text="Description"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

    </RelativeLayout>

    </androidx.cardview.widget.CardView>
</LinearLayout>

다음으로 java클래스-model.java를 만들어줍니다

package com.example.gaboza;

public class Model {

    private int image;
    private String title;
    private String desc;

    public Model(int image, String title, String desc) {
        this.image = image;
        this.title = title;
        this.desc = desc;

    }

    public int getImage() {
        return image;
    }

    public void setImage(int image) {
        this.image = image;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title;
    }

    public String getDesc() {
        return desc;
    }

    public void setDesc(String desc) {
        this.desc = desc;
    }
}



다음으로 model과 연결할 수 있는 어뎁터 클래스를 만들어 줍니다



package com.example.gaboza;

import android.content.Context;
import android.content.Intent;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.TextView;

import androidx.annotation.NonNull;
import androidx.viewpager.widget.PagerAdapter;

import java.util.List;

public class Adapter extends PagerAdapter {

    private List<Model> models;
    private LayoutInflater layoutInflater;
    private Context context;


    public Adapter(List<Model> models, Context context) {
        this.models = models;
        this.context = context;
    }

    @Override
    public int getCount() {
        return models.size();
    }

    @Override
    public boolean isViewFromObject(@NonNull View view, @NonNull Object object) {
        return view.equals(object);
    }

    @NonNull
    @Override
    public Object instantiateItem(@NonNull ViewGroup container, final int position) {
        layoutInflater = LayoutInflater.from(context);
        View view = layoutInflater.inflate(R.layout.item, container, false);

        ImageView imageView;
        TextView title, desc;

        imageView = view.findViewById(R.id.image);
        title = view.findViewById(R.id.title);
        desc = view.findViewById(R.id.desc);

        imageView.setImageResource(models.get(position).getImage());
        title.setText(models.get(position).getTitle());
        desc.setText(models.get(position).getDesc());


        view.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
               if(position==0) {
                   Intent intent = new Intent(context, TargetActivity.class);
                    //intent.putExtra("param", models.get(position).getTitle());
                    context.startActivity(intent);

               }
               else if(position==1){
                   Intent intent = new Intent(context, HomeActivity.class);
                   //intent.putExtra("param", models.get(position).getTitle());
                   context.startActivity(intent);
               }
               else if(position==2){
                   Intent intent = new Intent(context, MartActivity.class);
                   //intent.putExtra("param", models.get(position).getTitle());
                   context.startActivity(intent);
               }
               else if(position==3){
                   Intent intent = new Intent(context, CarActivity.class);
                   //intent.putExtra("param", models.get(position).getTitle());
                   context.startActivity(intent);
               }
            }

        });

        container.addView(view, 0);
        return view;
    }

    @Override
    public void destroyItem(@NonNull ViewGroup container, int position, @NonNull Object object) {
        container.removeView((View)object);
    }
}



마지막으로 main으로가서 작업해 줍시다

package com.example.gaboza;

import android.animation.ArgbEvaluator;
import android.content.Intent;
import android.content.SharedPreferences;
import android.os.Bundle;
import android.view.MotionEvent;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.drawerlayout.widget.DrawerLayout;
import androidx.viewpager.widget.ViewPager;

import com.bumptech.glide.Glide;
import com.kakao.usermgmt.UserManagement;
import com.kakao.usermgmt.callback.LogoutResponseCallback;

import java.util.ArrayList;
import java.util.List;

import de.hdodenhof.circleimageview.CircleImageView;

public class MainActivity extends AppCompatActivity {



    ViewPager viewPager;
    Adapter adapter;
    List<Model> models;
    Integer[] colors = null;
    ArgbEvaluator argbEvaluator = new ArgbEvaluator();

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        models = new ArrayList<>();
        models.add(new Model(R.drawable.ski, "목적지", "어디로 여행을 갈지 골라보자"));
        models.add(new Model(R.drawable.home, "숙소", "근처 숙소들을 찾아보고 숙소 가격을 알아보자"));
        models.add(new Model(R.drawable.emart, "장보기", "무엇을 사고 대충 비용이 얼마나 드는지 알아보자"));
        models.add(new Model(R.drawable.rent, "이동수단", "어떤 이동수단을 사용하고 비용이 얼마나 드는지 알아보자"));

        adapter = new Adapter(models,this);

        viewPager = findViewById(R.id.viewPager);
        viewPager.setAdapter(adapter);
        viewPager.setPadding(130, 360, 130, 0);

        Integer[] colors_temp = {
                getResources().getColor(R.color.color1),
                getResources().getColor(R.color.color2),
                getResources().getColor(R.color.color3),
                getResources().getColor(R.color.color4)
        };
        colors = colors_temp;

        viewPager.setOnPageChangeListener(new ViewPager.OnPageChangeListener() {
            @Override
            public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
                if (position < (adapter.getCount() -1) && position < (colors.length - 1)) {
                    viewPager.setBackgroundColor((Integer) argbEvaluator.evaluate(positionOffset, colors[position], colors[position + 1]));

                }

                else {
                    viewPager.setBackgroundColor(colors[colors.length - 1]);
                }
            }

            @Override
            public void onPageSelected(int position) {

            }

            @Override
            public void onPageScrollStateChanged(int state) {

            }
        });

    }
}





카드뷰에 배경색을 설정하기 위해 values-color로 들어가서 원하는 색으로 바꿔줍니다

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="colorPrimary">#3F51B5</color>
    <color name="colorPrimaryDark">#303F9F</color>
    <color name="colorAccent">#FF4081</color>
    <color name="color1">#424549</color>
    <color name="color2">#7e455e</color>
    <color name="color3">#796e25</color>
    <color name="color4">#59717c</color>
</resources>

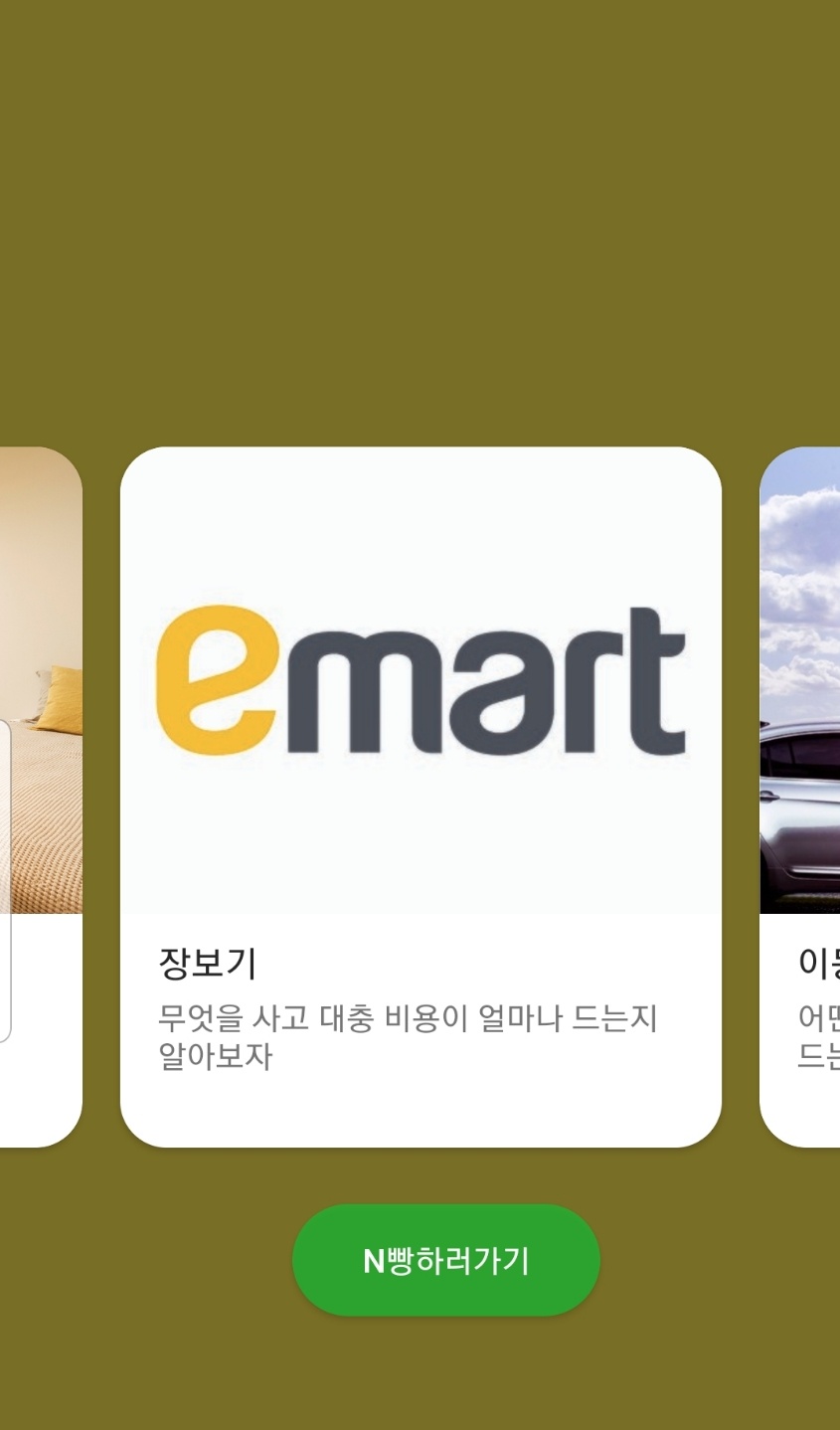

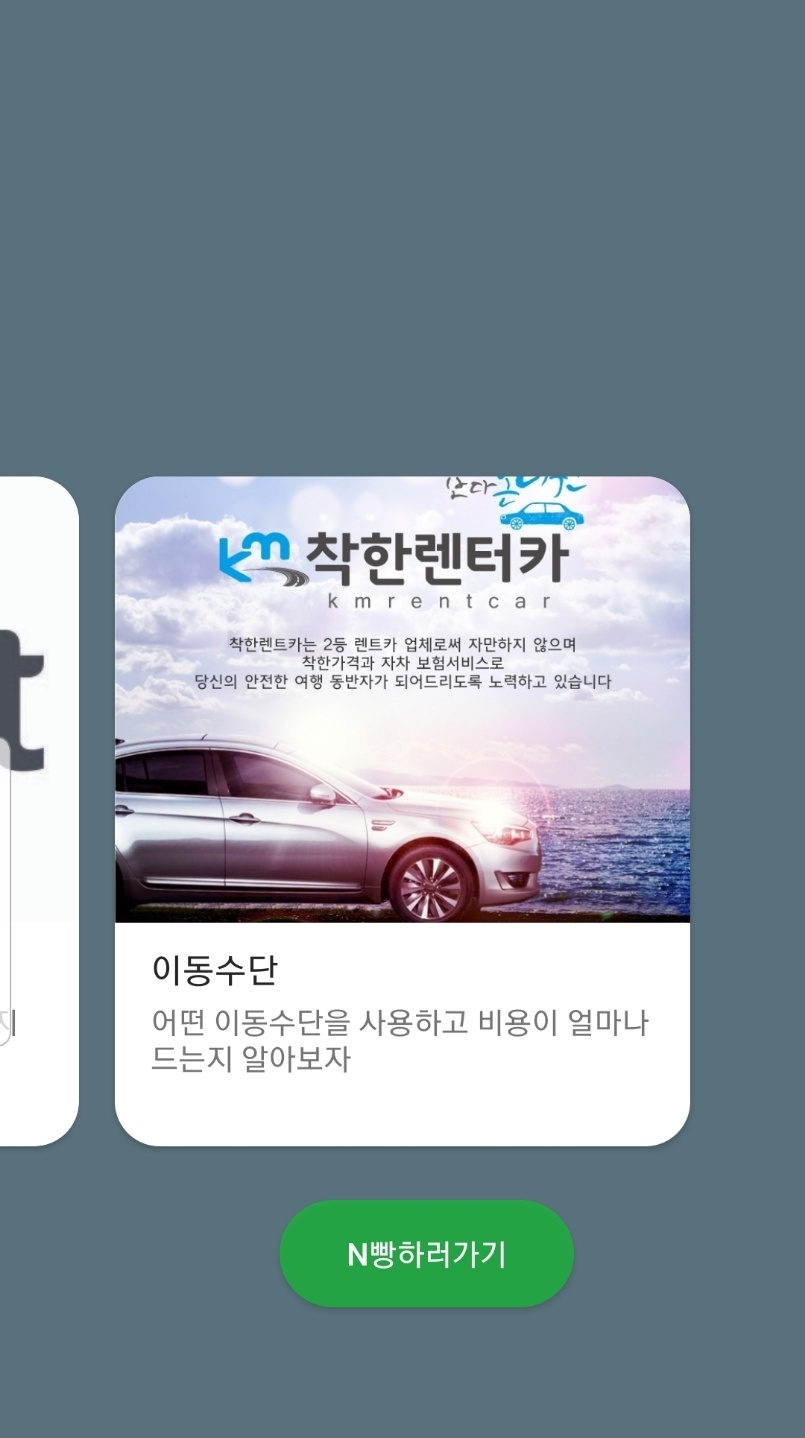

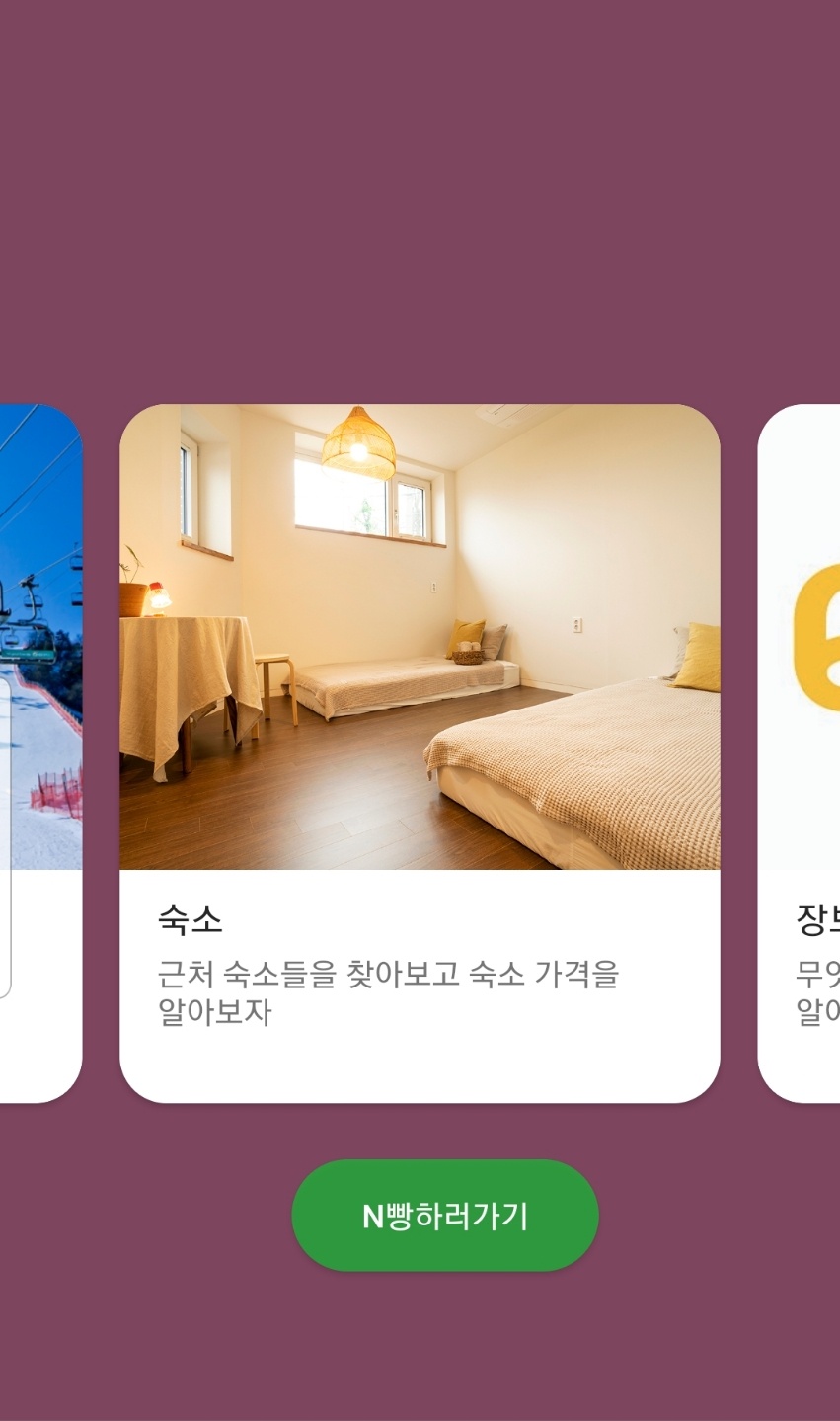

이렇게 4개의 카드뷰를 만들수 있습니다
